Product Overview

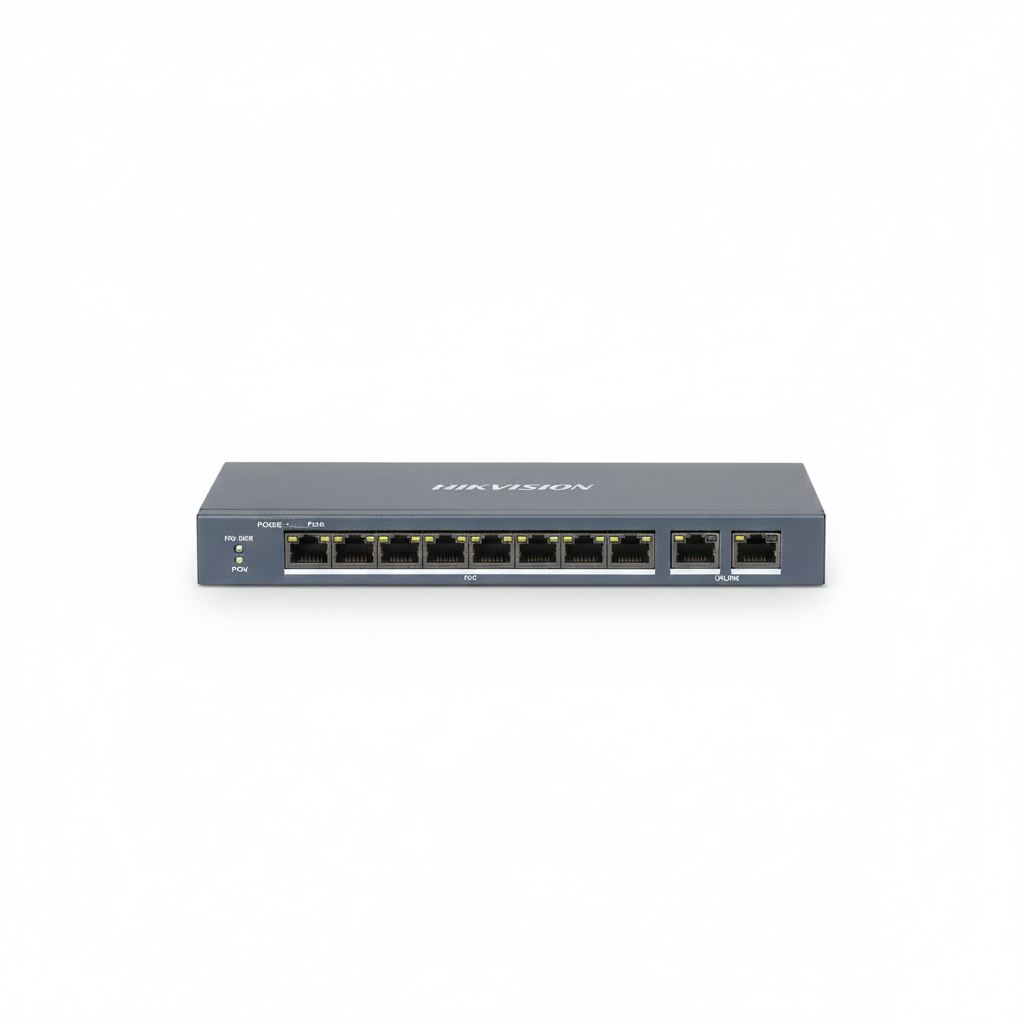

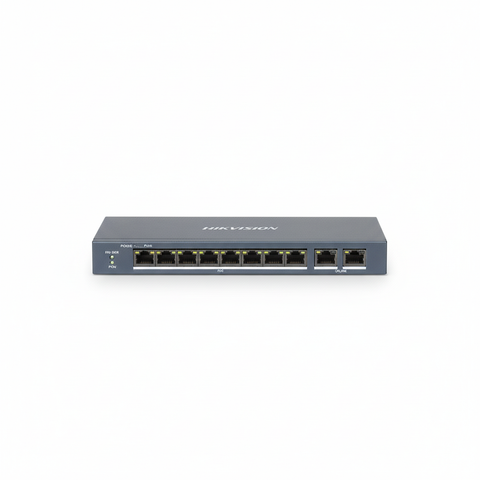

The Hikvision DS-3E0109P-E-M-B is a high-performance 8-port Fast Ethernet unmanaged PoE switch designed for seamless network connectivity in surveillance systems, IP cameras, wireless access points, and VoIP phones. With a robust 130W PoE budget and IEEE 802.3af/at compliance, this plug-and-play switch delivers reliable power and data transmission across all UAE emirates.

Key Features

• 8 PoE+ Ports: 8 × 10/100 Mbps RJ45 ports with PoE support (Port 1-8)
• 130W Total PoE Budget: Supports up to 30W per port for high-power devices
• IEEE 802.3af/at Compliant: Compatible with PoE and PoE+ standards
• Plug-and-Play Design: No configuration required—ideal for quick deployment
• Extend Mode: Transmission distance up to 250m in extend mode
• Fanless Design: Silent operation perfect for office and retail environments
• Desktop or Wall-Mountable: Flexible installation options
• Durable Metal Housing: Built for long-term reliability in UAE climate conditions

Technical Specifications

Hardware Specifications

• Model: DS-3E0109P-E-M-B
• Ports: 8 × 10/100 Mbps PoE+ RJ45 ports, 1 × 10/100 Mbps RJ45 uplink port
• PoE Standard: IEEE 802.3af/at
• PoE Power Budget: 130W maximum
• Power per Port: Up to 30W
• Switching Capacity: 1.8 Gbps
• Packet Forwarding Rate: 1.34 Mpps
• MAC Address Table: 2K

Performance Features

• Transmission Mode: Store-and-forward
• Extend Mode: Up to 250m transmission distance
• Flow Control: IEEE 802.3x flow control (full-duplex)
• Backpressure: Half-duplex mode support
• Jumbo Frame: Supports up to 10KB

Physical Specifications

• Dimensions: 294 × 180 × 44 mm
• Weight: Approx. 1.2 kg
• Power Supply: 100-240V AC, 50/60Hz
• Power Consumption: = 140W (full load)
• Operating Temperature: 0°C to 45°C (ideal for UAE indoor installations)
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Cooling: Fanless, natural convection

Applications in UAE

The DS-3E0109P-E-M-B is the perfect networking solution for:

• IP Surveillance Systems: Power and connect up to 8 Hikvision IP cameras without additional power adapters
• Wireless Networks: Deploy Wi-Fi access points across offices, warehouses, and retail spaces in Dubai, Sharjah, and beyond
• VoIP Telephony: Streamline business communications with PoE-powered IP phones
• Smart Building Solutions: Integrate IoT devices, access control systems, and intercom units
• Small to Medium Businesses: Cost-effective network expansion across all UAE emirates

Why Choose Hikvision DS-3E0109P-E-M-B in UAE?

• Proven Reliability: Hikvision's trusted brand with global recognition
• Cost-Effective: Eliminate the need for separate power supplies for PoE devices
• Easy Installation: Plug-and-play setup saves time and reduces deployment costs
• UAE Climate Ready: Designed to operate reliably in UAE's temperature and humidity conditions
• Local Support: Fast delivery and technical support across Dubai, Abu Dhabi, Sharjah, Ajman, Umm Al Quwain, Ras Al Khaimah, and Fujairah

Related Products

Expand your network infrastructure with our range of Hikvision PoE switches, including the DS-3E1552P-SI 48-Port Gigabit Smart PoE Switch for larger installations and the DS-3E1318P-EI 16-Port Fast Ethernet Smart PoE Switch for advanced management features.

Delivery Across UAE

Fast, reliable delivery to all 7 UAE emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Umm Al Quwain, Ras Al Khaimah, and Fujairah. We offer same-day dispatch for orders confirmed before 2 PM, with next-day delivery available to major cities. Secure packaging ensures your Hikvision switch arrives in perfect condition.

Package Contents

• 1 × Hikvision DS-3E0109P-E-M-B 8-Port PoE Switch
• 1 × Power cord
• 1 × Mounting kit (brackets and screws)
• 1 × Quick start guide
